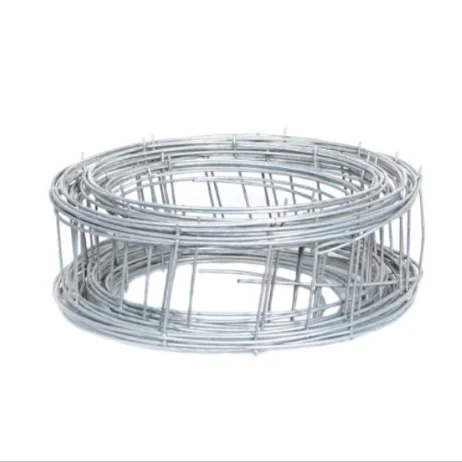

Brick Mesh/ Brick Force
Brick wall system
A-Grade
C-Grade
Product Code | Width (mm) | Main Wire Dia. (mm) | Cross Wire Dia. (mm) | Roll Length (m) |
BMA230 | 230 | 2.8 | 2.8 | 20 |
BMA150 | 150 | 2.8 | 2.8 | 20 |
BMA110 | 110 | 2.8 | 2.8 | 20 |
BMA75 | 75 | 2.8 | 2.8 | 20 |
Product Code | Width (mm) | Main Wire Dia. (mm) | Cross Wire Dia. (mm) | Roll Length (m) |
BMC230 | 230 | 2.0 | 2.0 | 20 |
BMC150 | 150 | 2.0 | 2.0 | 20 |
BMC110 | 110 | 2.0 | 2.0 | 20 |
BMC75 | 75 | 2.0 | 2.0 | 20 |
Used for structural reinforced masonry applications and crack control. Available in 20m rolls in widths of 75mm, 150mm and 230mm. Also available in 3m strips in widths of 75mm and 150mm. Manufactured in light duty as well as heavy duty.
Galvanized rolls are also available for coastal or high corrosive applications by request.
