Product code: F20; F25
Contact Konsa for pricing and availability. Specifications are confirmed during enquiry.

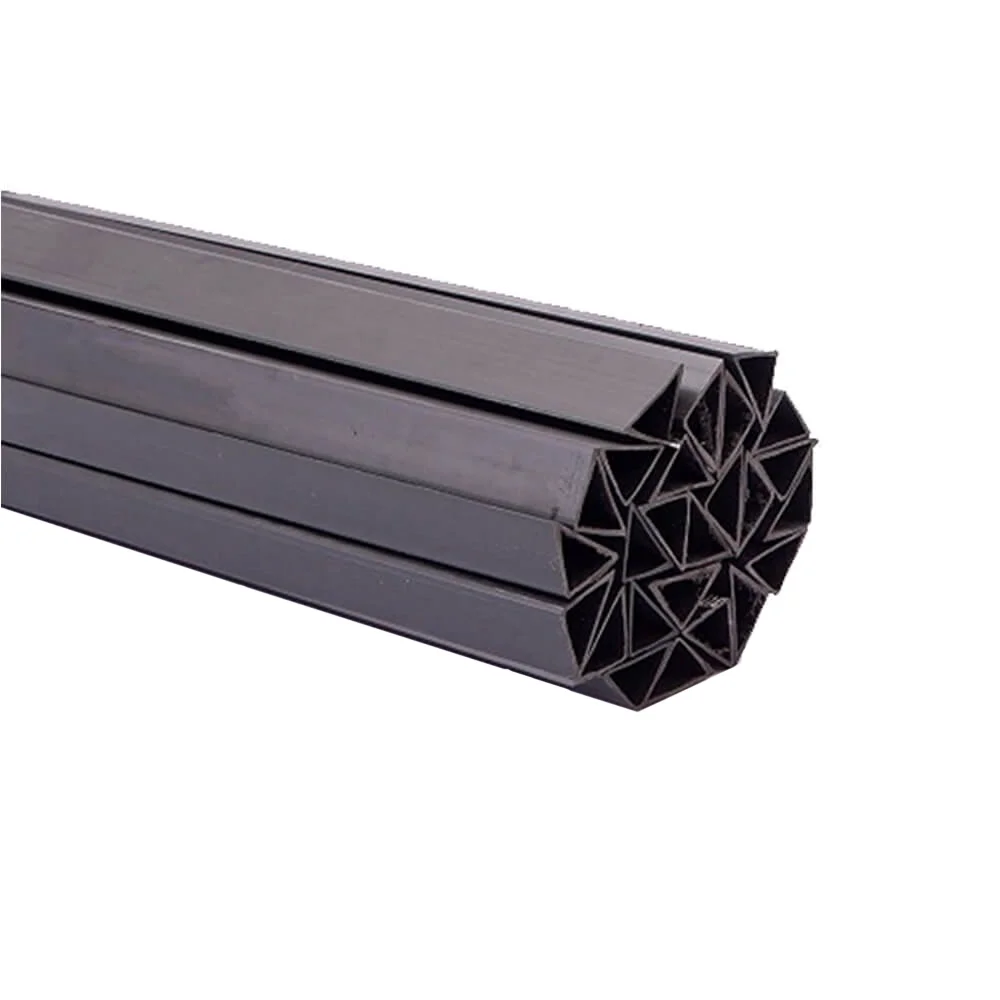

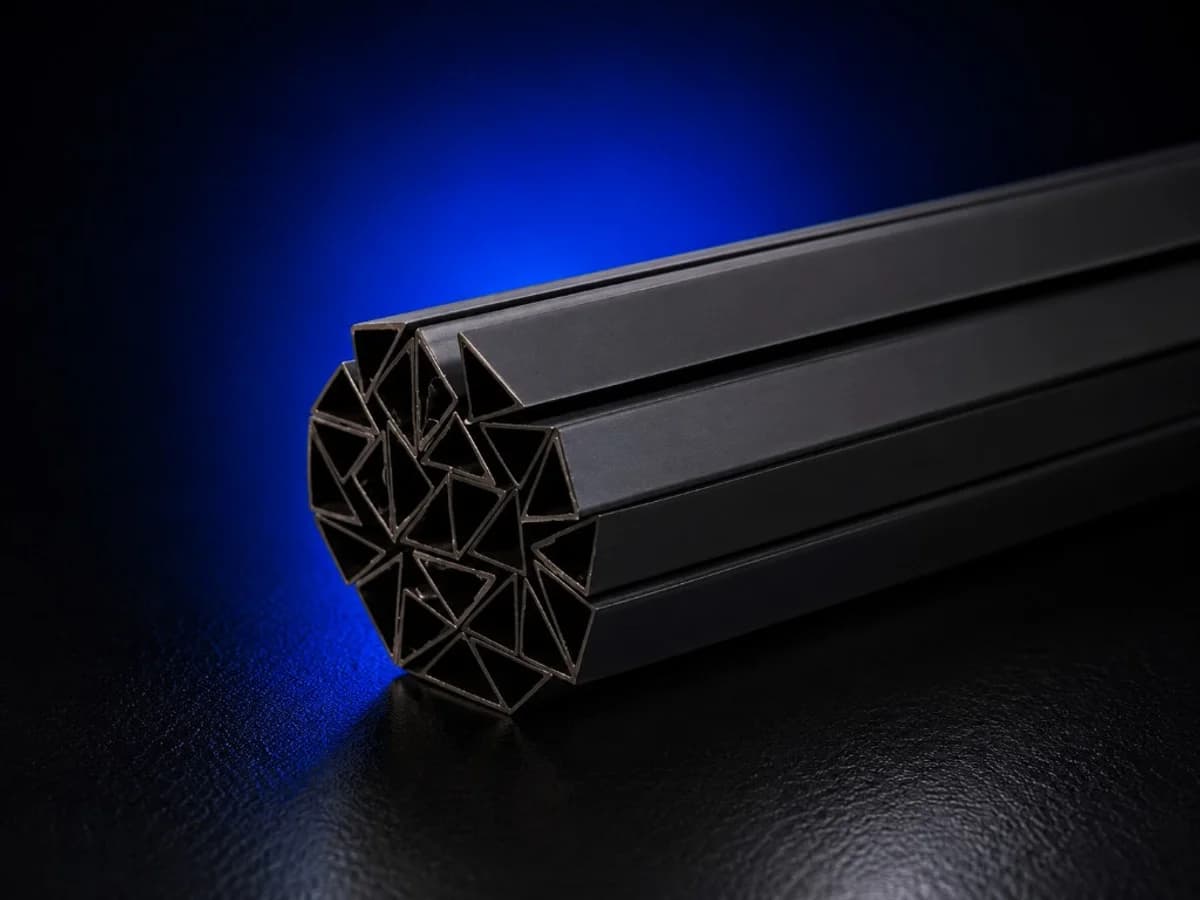

Konsa plastic corner fillets — also called plastic fillet corners — create clean chamfered edges on concrete slabs, columns, beams and precast components. They can be fixed to timber formwork with nails or screws, or attached to steel shutters using a suitable contact adhesive. Standard profiles are supplied in 3 m lengths. Select F20 or F25 from the specification table for the required chamfer profile.
Related products: Plastic Fillet Corners with Lip, Shutter Tape, Shutterseal / Groutex, and the Formwork Products and Accessories category.
Not sure which chamfer profile suits your formwork? Our team can help select fillet size and fixing method for timber or steel shutters.

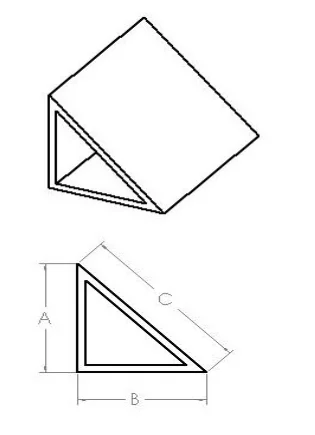

| Product Code | A | B | C |
|---|---|---|---|
| F20 | 20 | 20 | 28 |
| F25 | 25 | 25 | 35 |
Sizes and codes extracted from the legacy product table.
Code: FN20

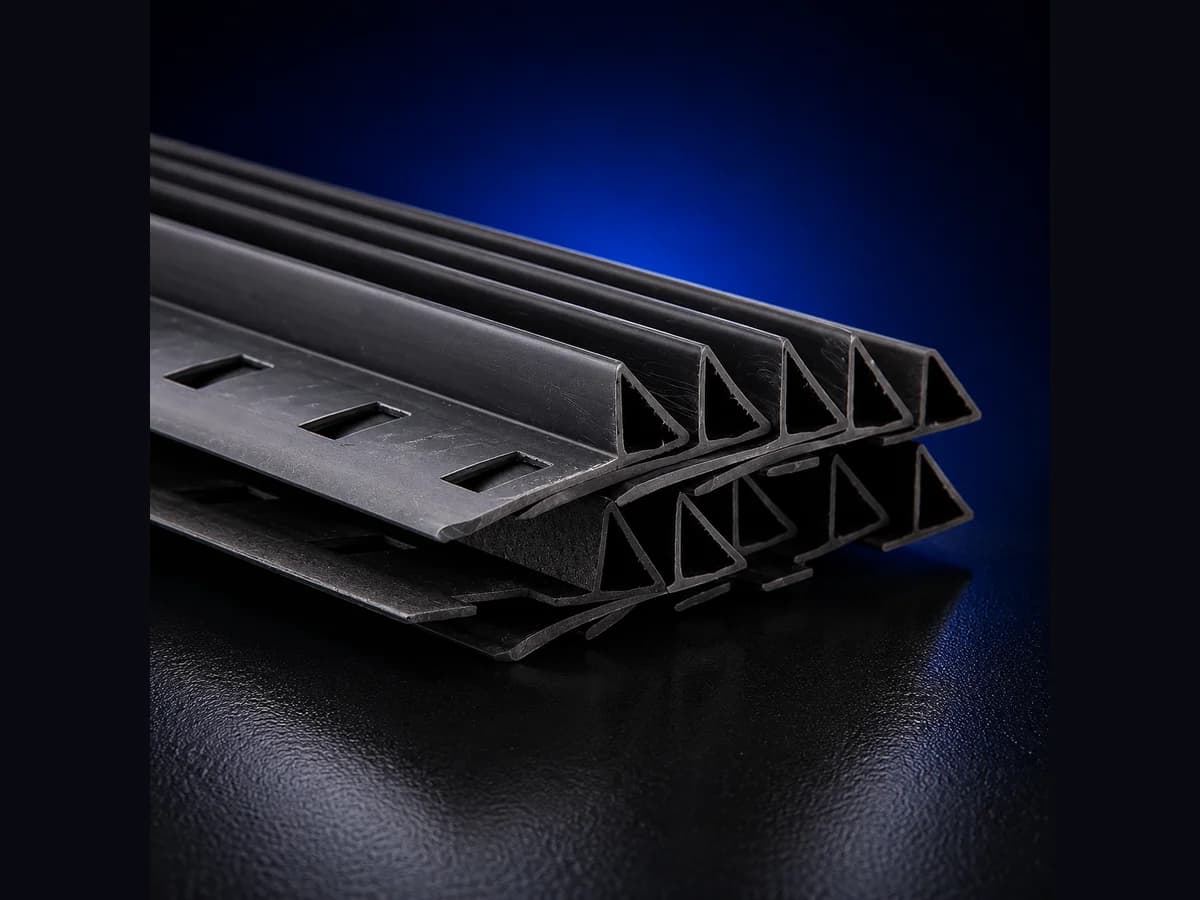

Konsa plastic corner fillets with lip — plastic fillet corners with fixing lips — create consistent chamfers on timber or steel formwork. Narrow-lip, wide-lip and slotted profiles are supplied in 3 m lengths.
Code: PS14

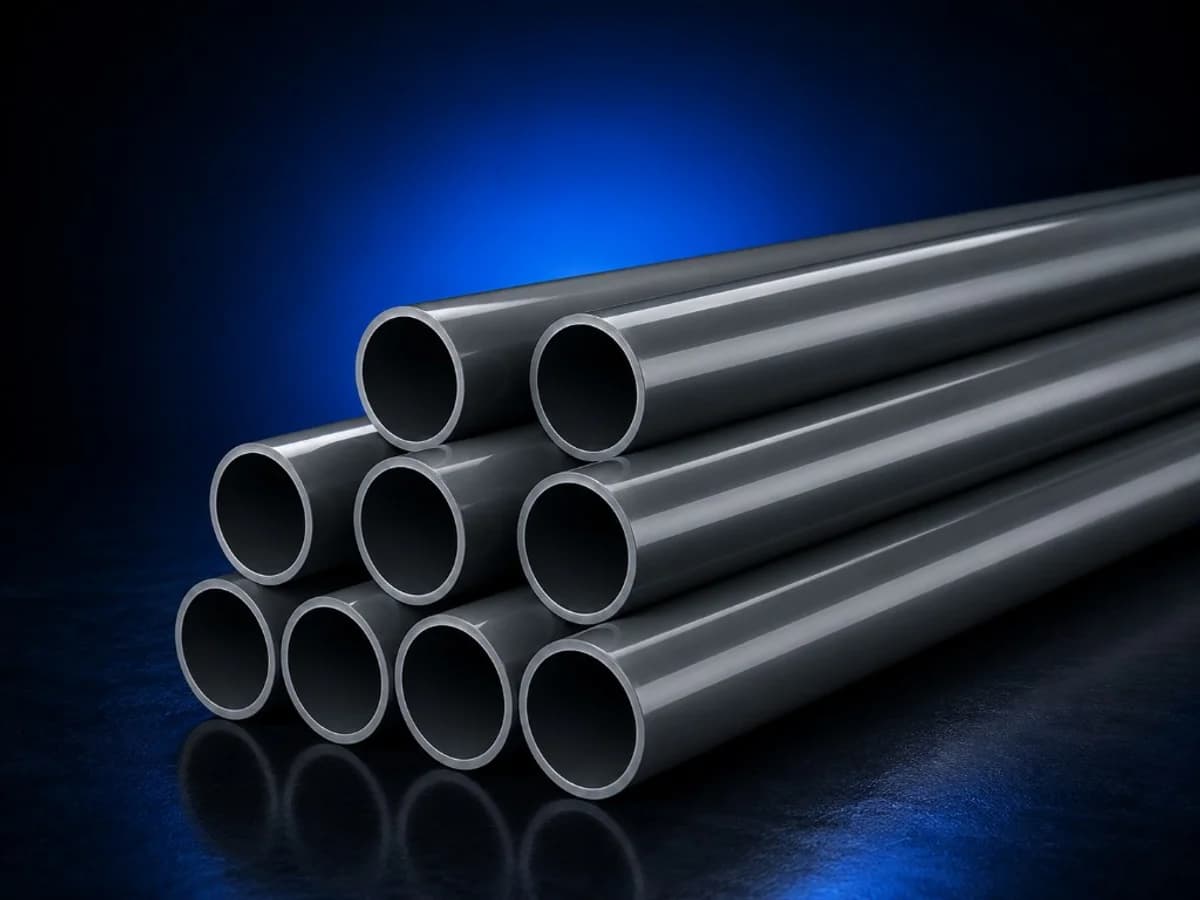

Konsa plastic ferrule tube spaces opposing formwork panels while creating a sleeve around through-tie rods, allowing the tie rod to be withdrawn and reused after casting. The range covers several internal and external diameters to suit different tie systems. Tubes can be supplied in 3 m lengths for cutting on site or cut to the length required for the formwork assembly.
Code: PC14

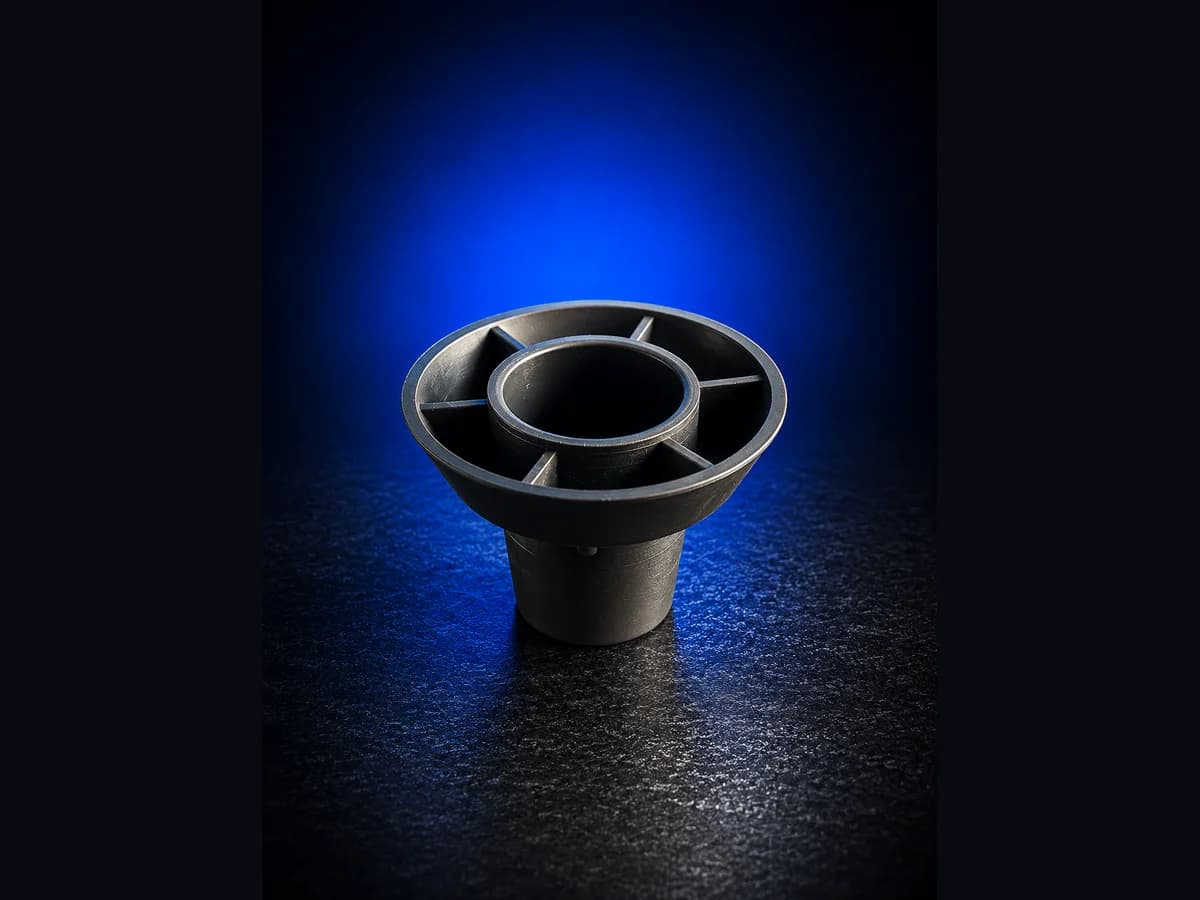

Konsa push-on plastic cones fit onto the ends of compatible ferrule tubes in formwork tie systems. After the shutters are removed, the cones can be extracted to leave a neat chamfered recess around the tie opening for subsequent grouting or finishing. Multiple sizes are available; match the cone product code to the ferrule-tube diameter shown in the specification table.
Code: P12

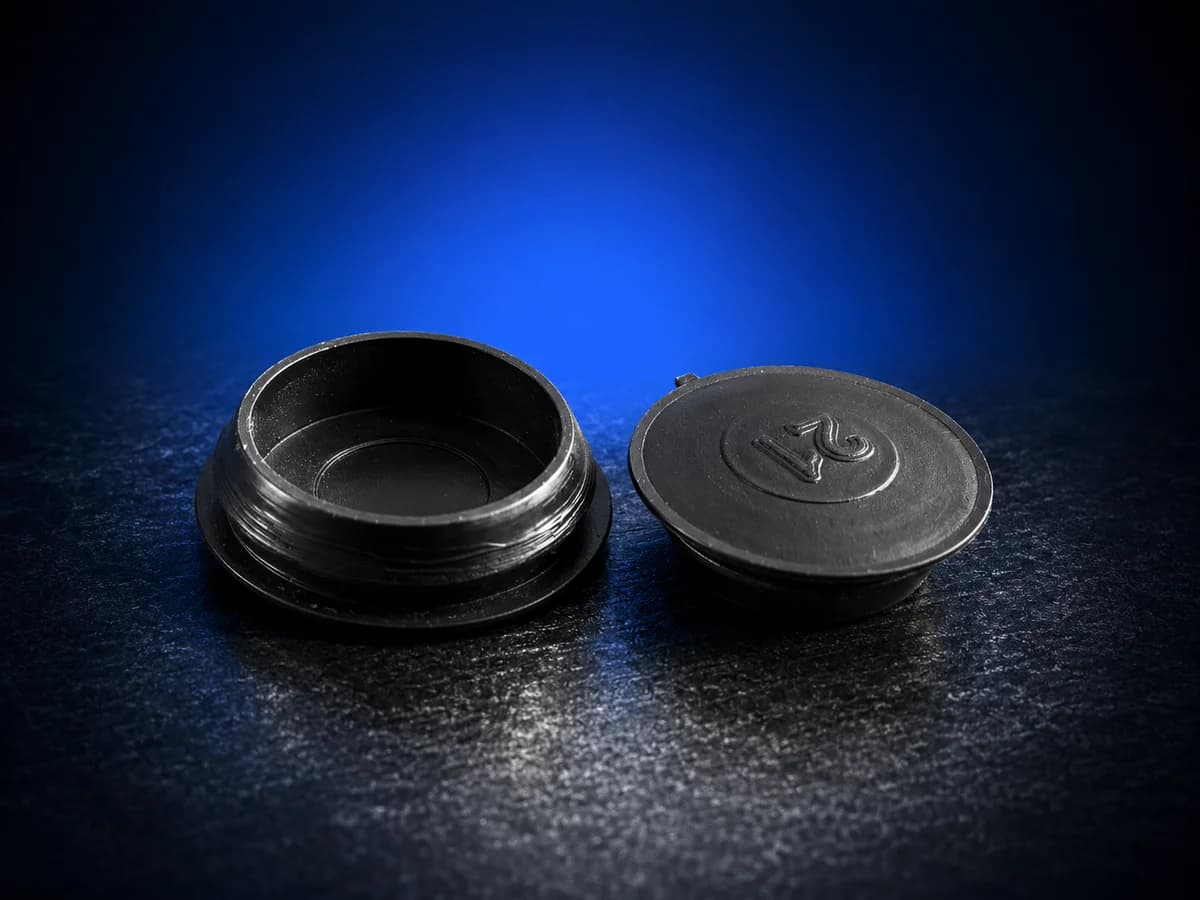

Konsa plastic shutter plugs close unused ferrule and tie holes in steel or timber formwork panels. The push-fit design provides a quick way to blank off openings before concrete is placed, helping reduce grout leakage through the shutter face. Plug sizes are available for shutter holes from 12 mm to 26 mm; choose the product code that matches the measured hole diameter.
